From €235 ex VAT
Long Span Shelving
Beam-to-frame bays for hand-loaded stock, with no nuts or bolts in them. Three depths, timber or steel inserts, hundreds of bays in stock.
Rack King and Shelving Limited is Ireland's largest supplier of industrial warehouse shelving. We hold hundreds of bays at all times and specialise in supplying and fitting long span shelving nationwide, usually within a few days of an order, whatever the size of the job.

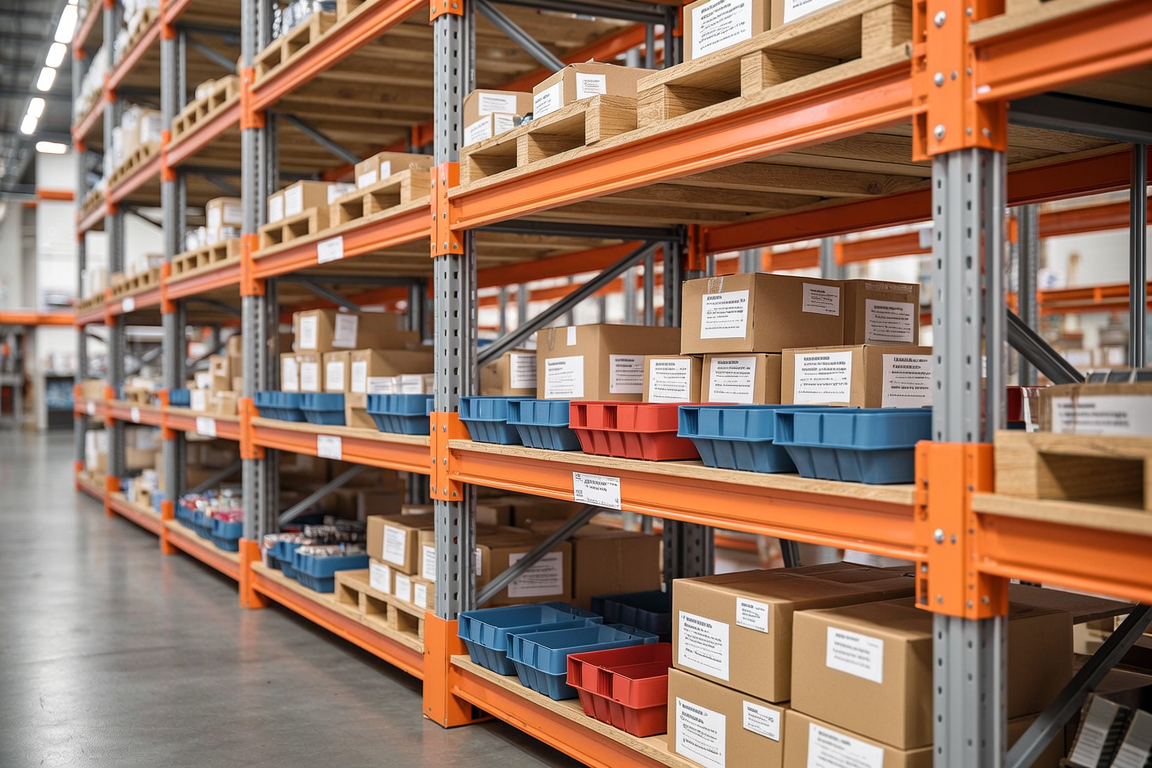

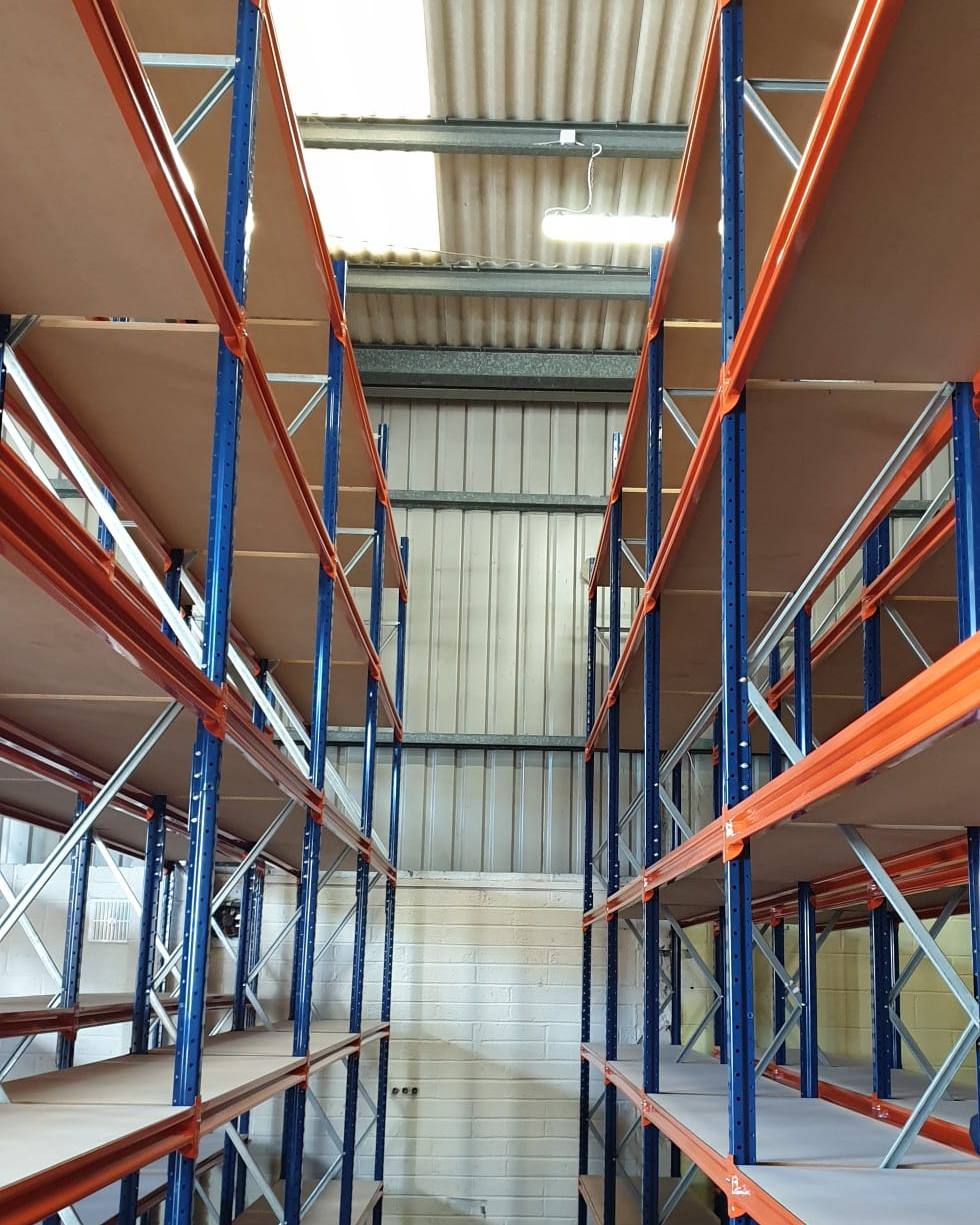

Long span is the main picking system in warehouses everywhere. Beams clip straight into the frames with no nuts or bolts, each picking location carries a high load, and open-back bays stand on their own and load from both sides.
Our long span is European manufactured, and because we keep high volumes here all year you can always come back for extra bays and levels. Everything is available from our own warehouse, so collection is fine: ring us, pick a time, and it will be waiting for you.
We supply standard heights and depths, and everything is customisable, so call us with what you need to store. Installation is available nationwide, costed on location. If you are still deciding between systems, the shelving hub puts this next to the industrial, modular and container ranges.
Depth
| Depth | What goes on it | Note |
|---|---|---|
| 450mm | Banker's boxes, files, shoeboxes, stationery | Smallest standard size. Suits items to 500mm deep |
| 600mm | Auto parts, garage stock, self-storage units | 70% of what we sell |
| 900mm | Bulk stock | Twice the capacity of 450mm at a better rate per bay |
If you have the floor space, 900mm is the better buy.
Inserts
Every bay ships with three adjustable levels and new timber inserts. Levels can be added or taken out to suit. Steel inserts are an option at 600mm deep, for a few euro more, and give you a surface you can wipe down.
Steel goes into takeaways, hotels, petrol stations, butchers and cold rooms, anywhere moisture in the air rules a timber insert out.
Mobile long span shelving
For stock-picking operations we fit long span bays with castors, four per bay, two braked and two free-running, from €80 a bay depending on the working load. There is more on mobile long span shelving, including sizes and where it earns its keep.
Advantages
- No nuts or bolts: beams clip to the frames and levels adjust in minutes.
- Loads from both sides: open-back bays double up as pick faces.
- Hundreds of bays in stock: most orders fitted within 48 hours.
- Wipeable steel inserts: at 600mm deep, for food-safe environments.
Priced configurations
A starter bay stands on its own. Each extension bay shares a frame with the bay beside it, so a long run costs less per bay. All prices ex VAT at 23%. Delivery and installation are quoted separately.
| Specification | Inserts | Starter bay | Extension bay |
|---|---|---|---|
| 2250mm high × 2000mm wide × 600mm deep · 3 levels | Timber | €260 | €220 |
| 2250mm high × 2000mm wide × 600mm deep · 4 levels | Timber | €305 | €265 |
| 2250mm high × 2000mm wide × 600mm deep · 3 levels | Steel | €330 | €290 |
| 2250mm high × 2000mm wide × 600mm deep · 4 levels | Steel | €400 | €360 |
| 2250mm high × 1200mm wide × 600mm deep · 3 levels | Timber | €235 | €195 |
| 2000mm high × 2000mm wide × 600mm deep · 3 levels | Timber | €250 | €210 |
| 2000mm high × 2000mm wide × 600mm deep · 4 levels | Timber | €295 | €255 |
| 2250mm high × 2000mm wide × 900mm deep · 3 levels · 2 support bars per level | Timber | €340 | — |
| 2250mm high × 2000mm wide × 900mm deep · 4 levels · 2 support bars per level | Timber | €410 | — |
| 2000mm high × 2000mm wide × 900mm deep · 3 levels · 2 support bars per level | Timber | €330 | — |
Container shelving
We fit the same long span system into 20ft and 40ft shipping containers, with four priced layouts from €740. See container shelving. Extra levels, inserts and components are on the accessories page.
